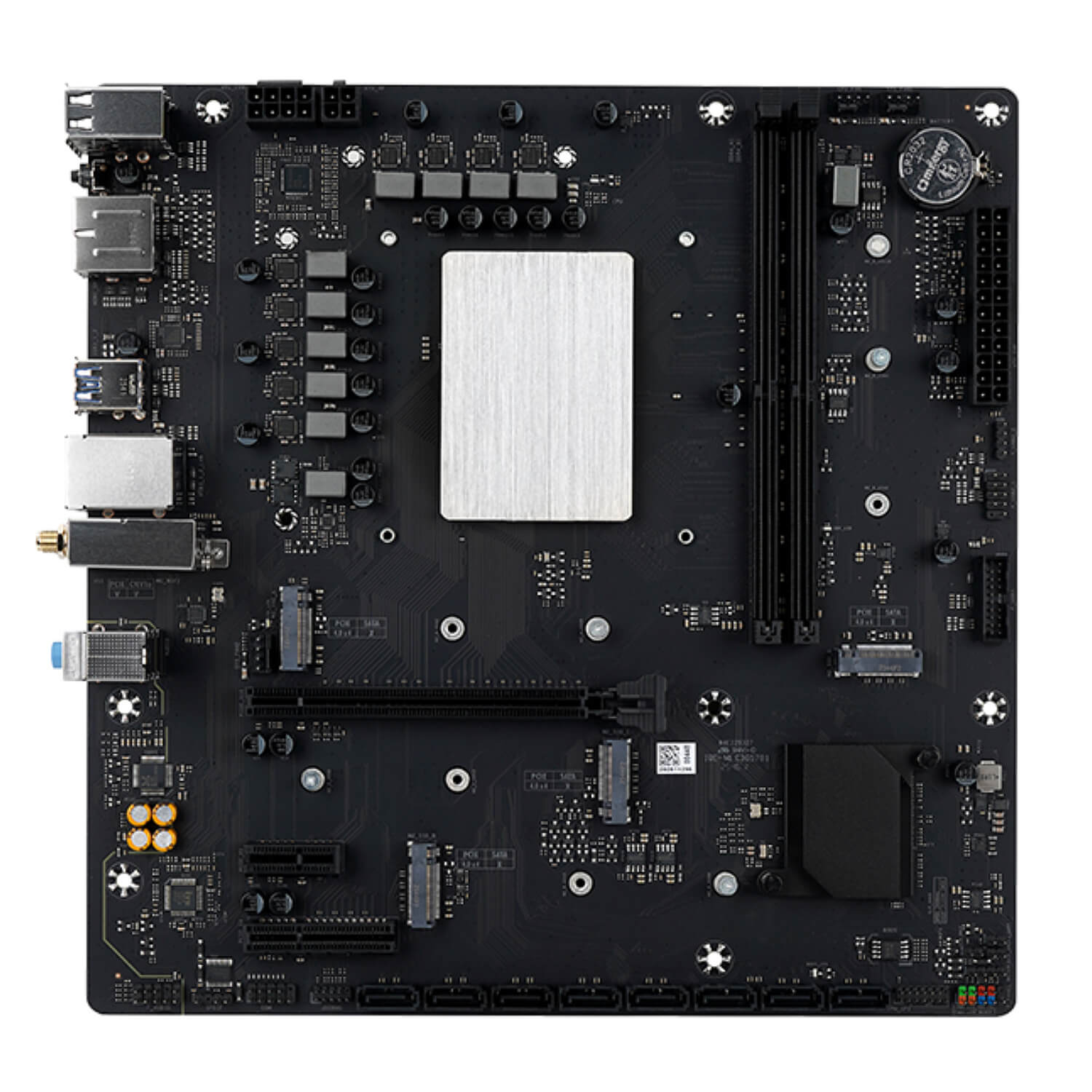

plate type: M-ATX
CPU: i5-14450HX
Memory: Two DIMM DDR4 memory slots, supporting up to 64GB of memory in total, supporting dual-channel memory technology, and supporting 3200/2933/2666/2400/2133MHz
Network: It integrates a Realtek 8111H network card chip (10/100/1000Mbit), one onboard RJ45 interface, and one onboard MTK7902 WIFI6E wireless network card, supporting Bluetooth 5.3
Disk interface: 8 SATA 3.0 ports, 4 M.2 M-Key slots (supporting 2242/2280 PCIe x4/x2 channel SSDs)
PCIe slot: One PCIe x16 4.0 slot, one PCIe x4 3.0 slot, and one PCIe x1 3.0 slot
USB interface: Onboard rear I/O: 4 USB 3.2 Gen 1 ports, 4 USB 2.0 ports; Onboard headers: 1 set (2 pins) of USB 3.2 Gen 1 headers, 1 set (2 pins) of USB 2.0 headers, 1 USB 2.0 header
audio interface: High-definition audio, integrated ALC897 sound card chip
Video interface: One DisplayPort and one HDMI port
Power interface: 24 stitches + 8 stitches
Motherboard accessories: Instruction manual, SATA data cable
